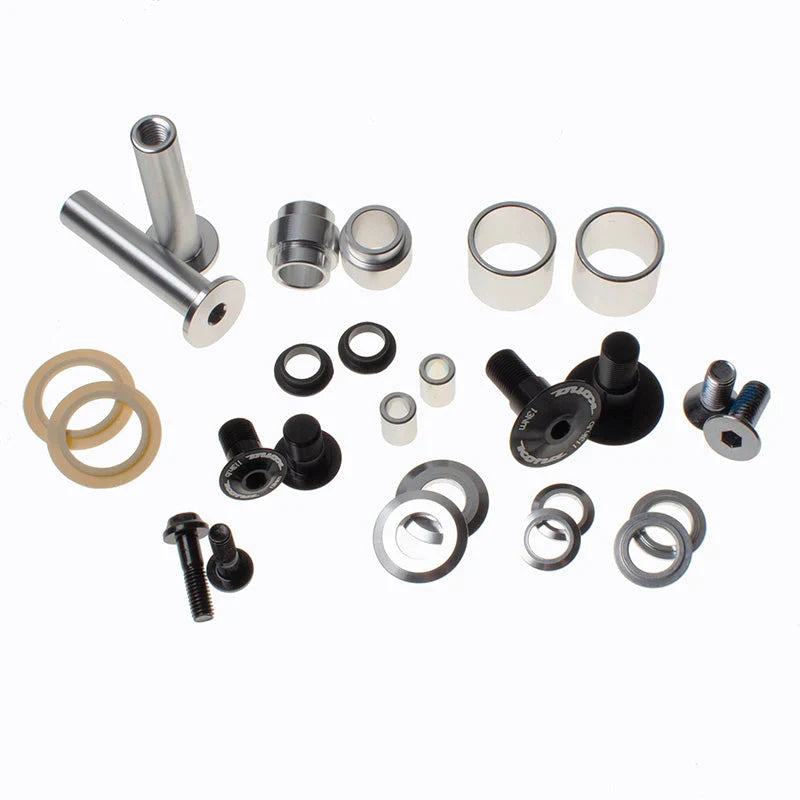

Bolt Kit - Hei Hei Supreme Pivot Kit (14)

Bolt Kit #14H for 2015 Hei Hei models.

• Pivot Bolt Kit (bearings not included)

Included:

• Rocker Pivot Bolt
  - rocker to seat tube
  - ¯27.5*M10*P1.0*31mm
• Rocker Pivot Washer
  - rocker to seat tube
  - ¯24.5* ¯ 12.1*t3mm
• Seat Stay Pivot Bolt
  - seat stay to rocker
  - ¯18.5*M10*P1.0*19.5mm
• Seat Stay Pivot Washer
  - seat stay to rocker
  - ¯16.5* ¯ 10.2*t2.5mm
• Main Pivot Axle Locking Bolt
  - chain stay to seat tube
  - M8*P1.25*20mm
• Main Pivot Axle
  - chain stay to seat tube
  - ¯21.9*57.2mm
• Main Pivot Inner Sleeve
  - bearing race support
  - ¯19.8*¯12.2*t19.7mm
• Main Pivot Outer Sleeve
  - bearing race support
  - ¯23.9*¯20*t19.6mm
• Main Pivot Washer
  - ¯12.1*¯20*t2.5
• Main Pivot Dust Seal
  - ¯20.05*¯30.5*t2.3mm
• Seat Stay Pivot Bolt Ð seat stay to chain stay
  - M6*P1.0*22mm
• Seat Stay Pivot Bushing Inner Axle
  - seat stay to chain stay
  - ¯9.8*¯6*13.5mm
• Seat Stay Pivot Bushing
  - seat stay to chain stay
  - ¯9.7*¯12*¯16.2*4.85mm

Model Compatibility:

• 2015 Hei Hei Supreme, Hei Hei DL
• 2015-2012 Hei Hei models
