Kona

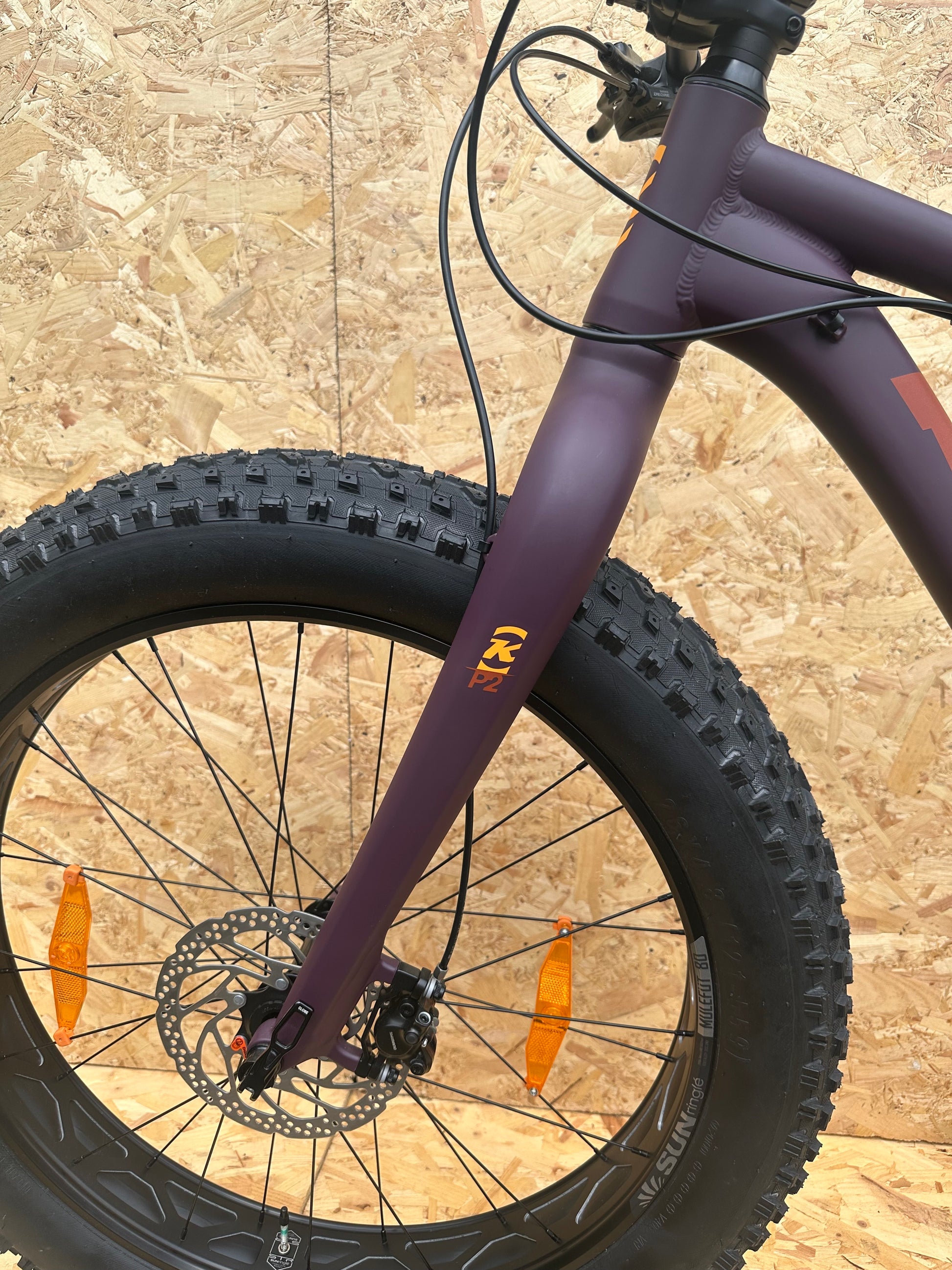

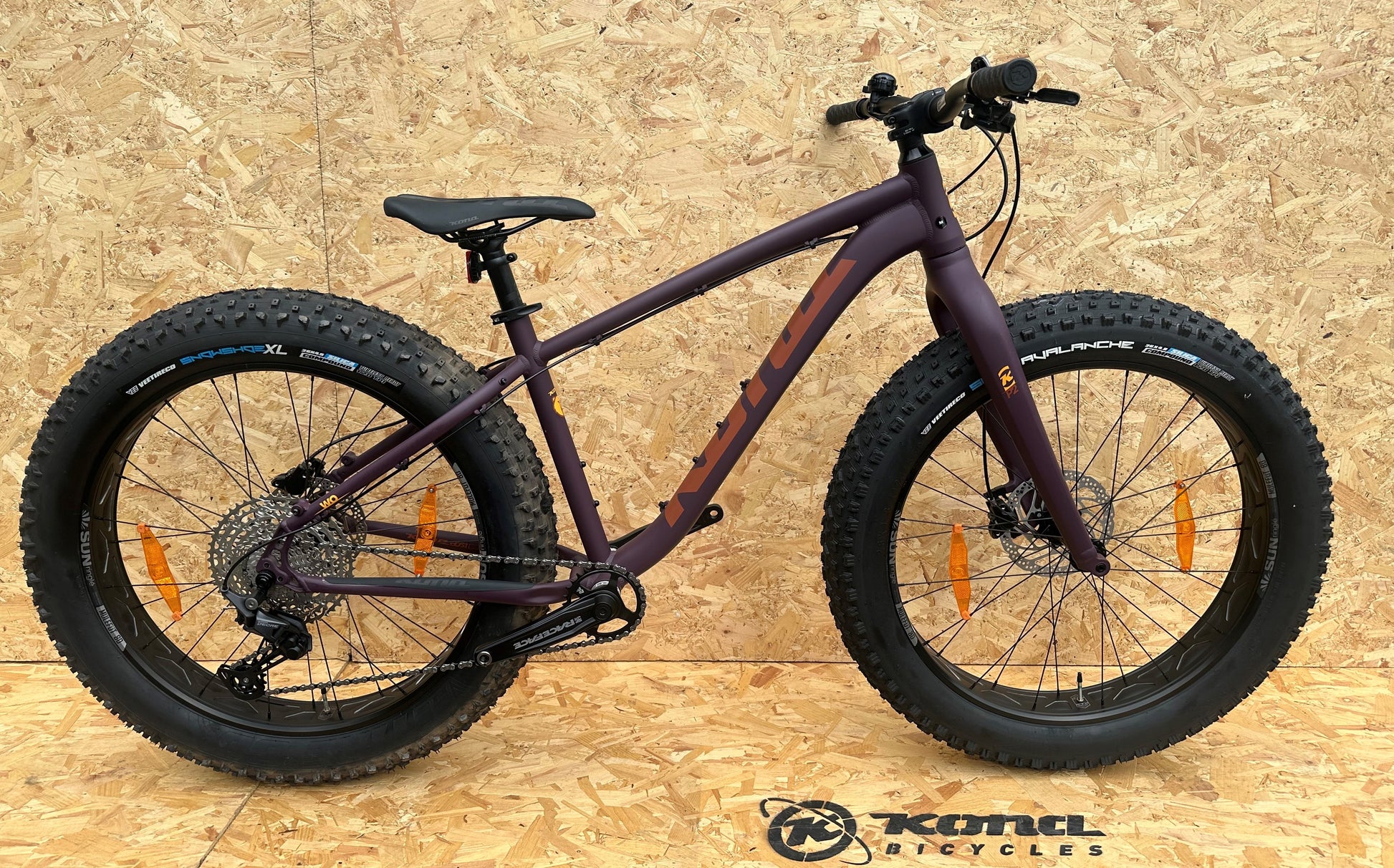

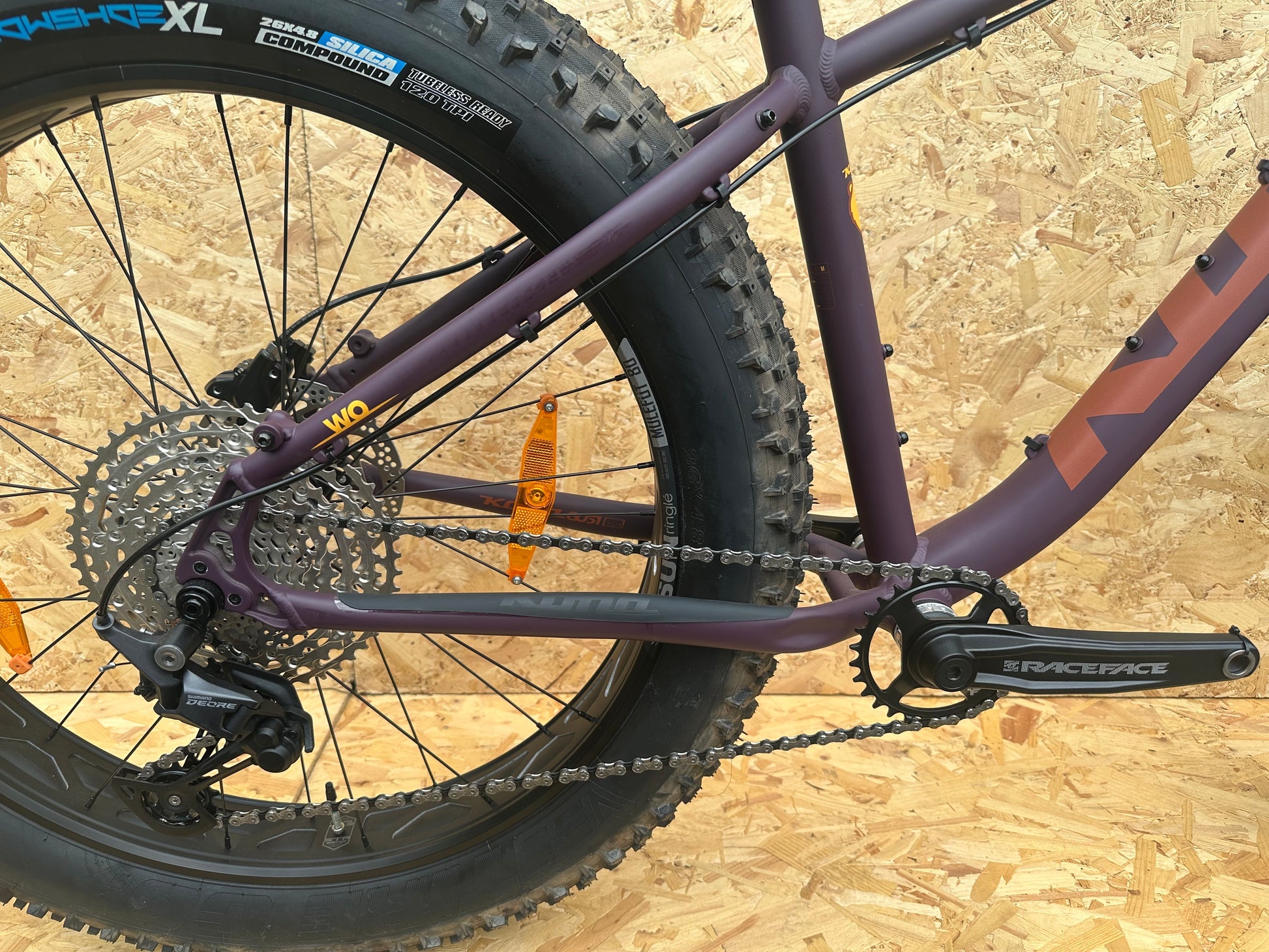

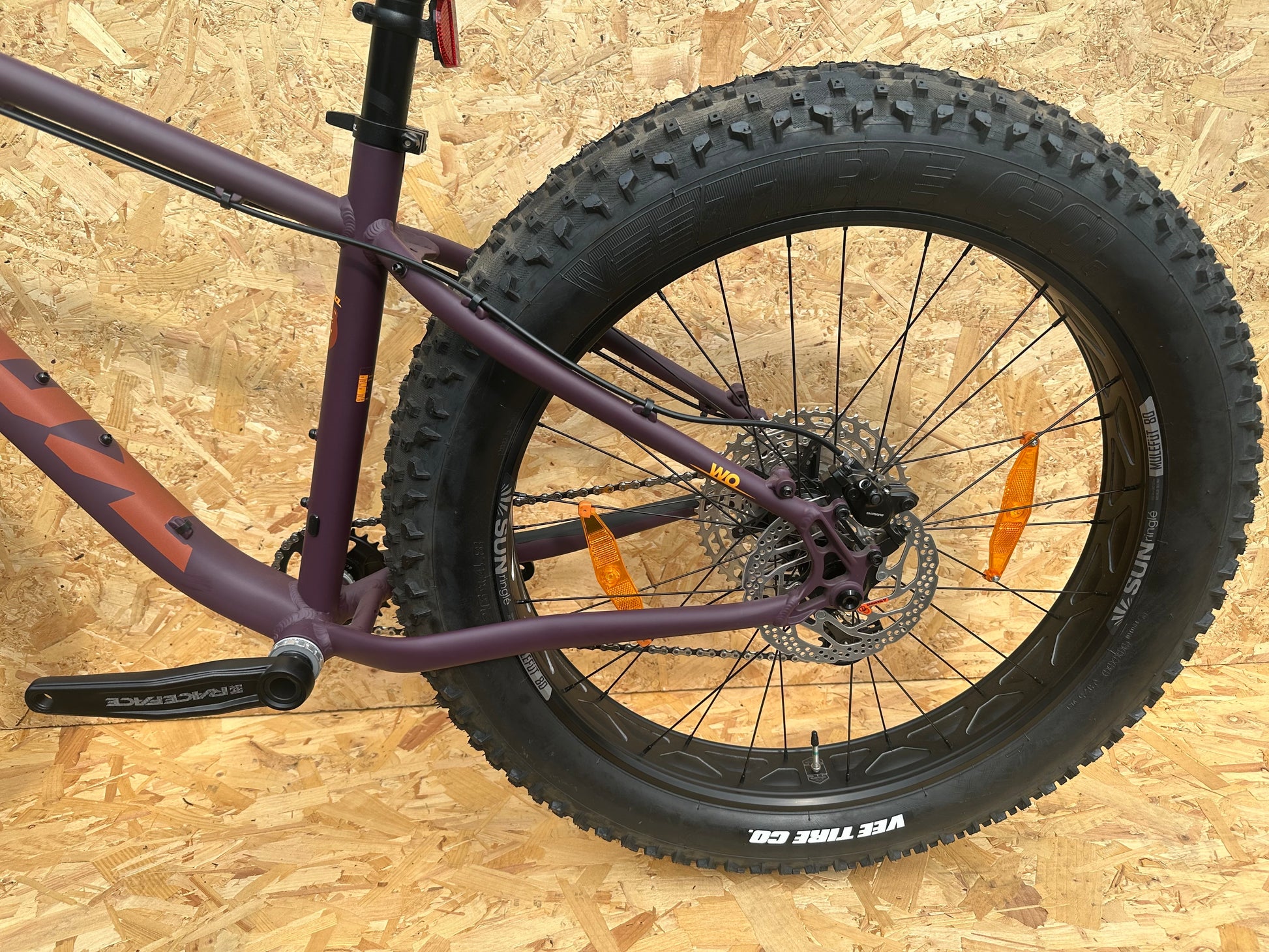

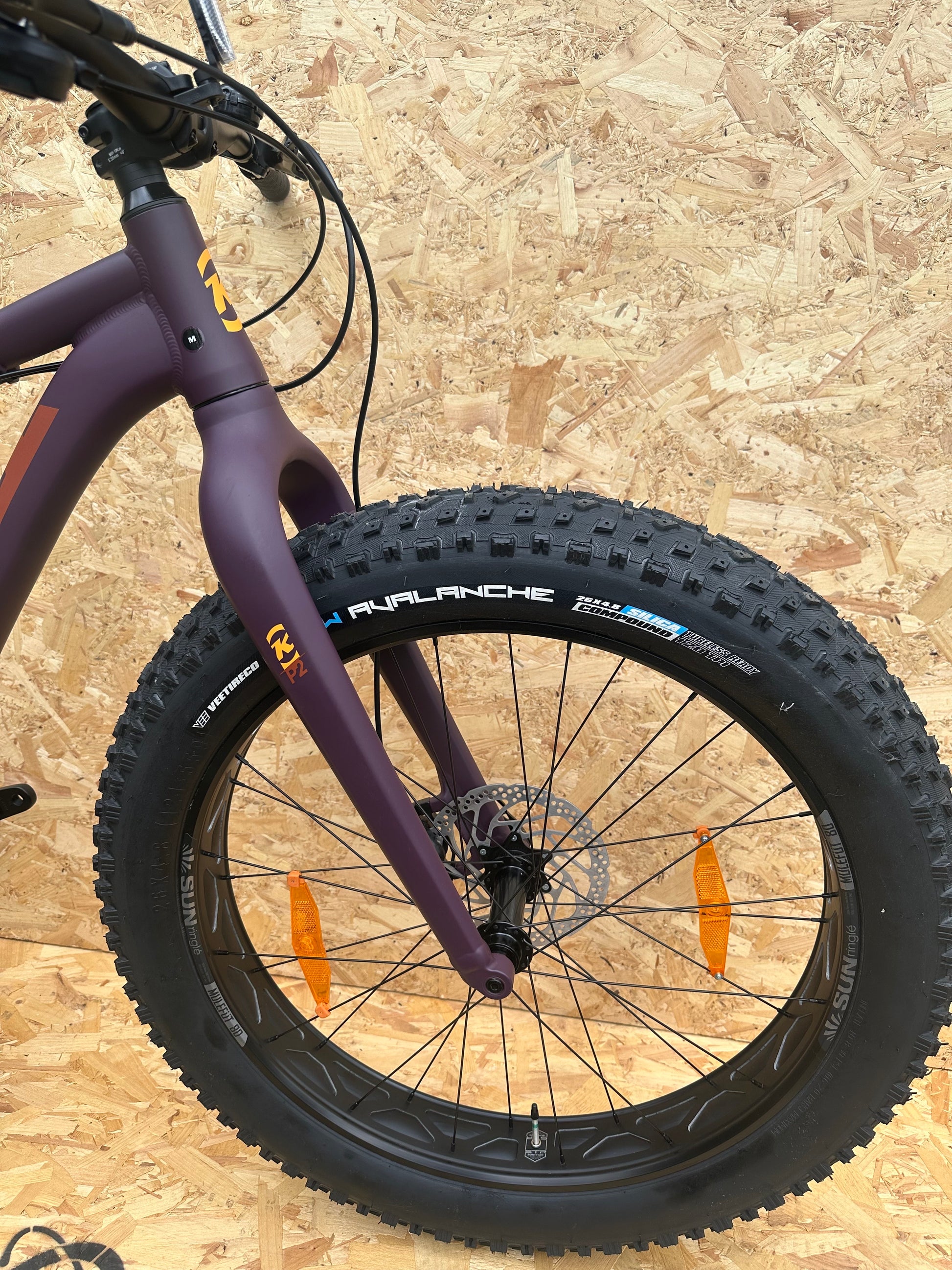

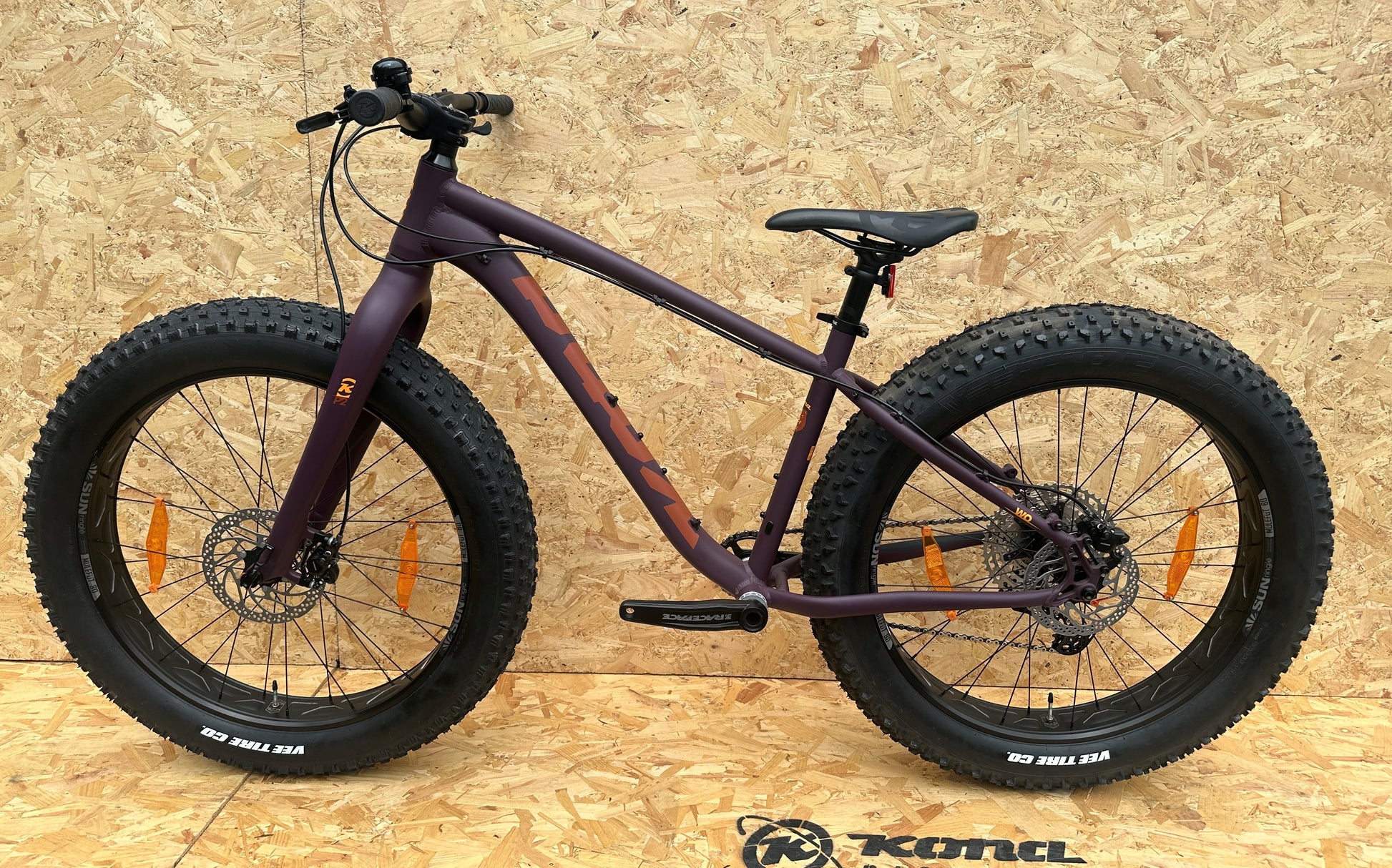

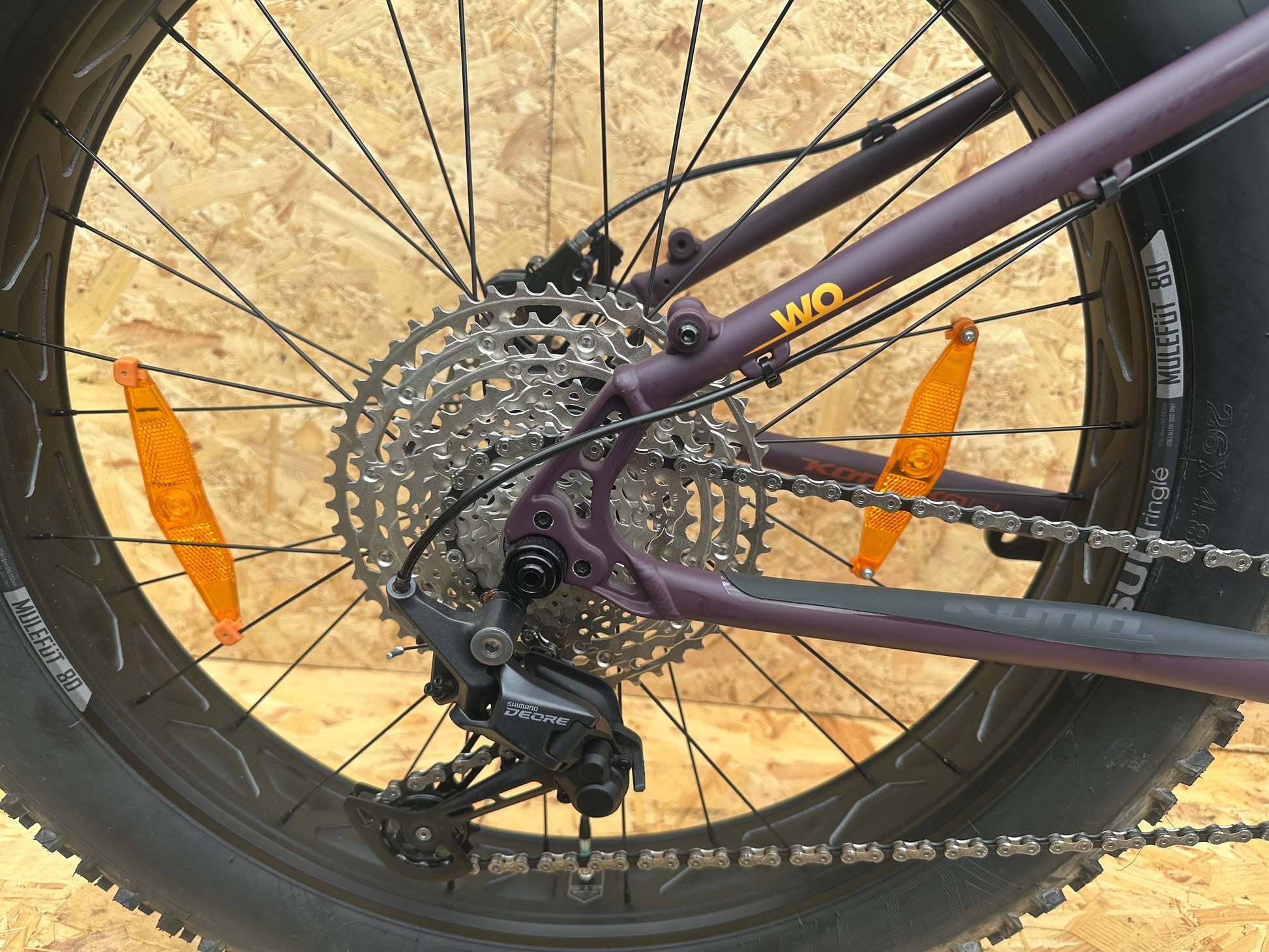

2025 Kona Wo - Purple - Medium | Ex Display
2025 Kona Wo - Purple - Medium | Ex Display
Couldn't load pickup availability
Description
SPECS & GEOMETRY
SPECIFICATIONS
|
Frame Material |
Kona Fat 6061 Aluminum Butted |
|
Sizes |
S, M, L, XL |
|
Rear Shock |
n/a |
|
Fork |
Kona Wo Fat Disc |
|
Crankarms |
Race Face Ride Fat |
|
Chainrings |
28t Wide/Narrow |
|
B/B |
Race Face 100mm |
|
Pedals |
n/a |
|
Chain |
KMC |
|
Cassette |
Shimano Deore |
|
Chainguide |
n/a |
|
F/D |
n/a |
|
R/D |
Shimano Deore |
|
Shifters |
Shimano Deore 11 Speed |
|
Brake Calipers |
Shimano Hydraulic |
|
Front Brake Rotor |
Shimano RT10 180mm |
|
Rear Brake Rotor |
Shimano RT10 160mm |
|
Brake Levers |
Shimano MT410 Hydraulic |
|
Headset |
Feimin FP-H868B |
|
Handlebar |
Kona XC/BC 35 |
|
Stem |
Kona XC/BC 35 |
|
Seatpost |
Kona XC/BC 31.6mm |
|
Seat Clamp |
Kona QR |
|
Grips |
Kona Key Grip |
|
Saddle |
Kona Fat |
|
Front Hub |
KT 150x15mm |
|
Rear Hub |
KT 197x12mm |
|
Spokes |
Stainless Black 14g |
|
Rims |
Sun Ringle Mulefut 80 Tubeless Ready |
|
Front Tire |
Vee Tire Snow Avalanche SC TR 26x4.8" |
|
Rear Tire |
Vee Tire Snowshoe XL SC TR 26x4.8" |
|
Paint Color |
Matte Plum w/ Oxy Fire Decals |
|
Extras |
n/a |
GEOMETRY
| SIZE | S | M | L | XL | |
| 1 | ST LENGTH | 381 | 432 | 483 | 533 |
| 2 | TT LENGTH | 591 | 619 | 647 | 679 |
| 3 | REACH | 405 | 430 | 455 | 485 |
| 4 | STACK | 608 | 617 | 627 | 636 |
| 5 | STANDOVER | 739 | 768 | 792 | 802 |
| 6 | HT ANGLE | 69.0 | 69.0 | 69.0 | 69.0 |
| 7 | HT LENGTH | 120 | 130 | 140 | 150 |
| 8 | ST ANGLE | 73.0 | 73.0 | 73.0 | 73.0 |
| 9 | CS LENGTH | 455 | 455 | 455 | 455 |
| 10 | BB DROP | 60 | 60 | 60 | 60 |
| 11 | BB HEIGHT | 324 | 324 | 324 | 324 |
| 12 | WHEELBASE | 1125 | 1154 | 1182 | 1216 |
| 13 | FRONT CENTER | 677 | 705 | 694 | 767 |
| 14 | FORK LENGTH | 485 | 485 | 485 | 485 |
| 15 | FORK OFFSET | 55 | 55 | 55 | 55 |
