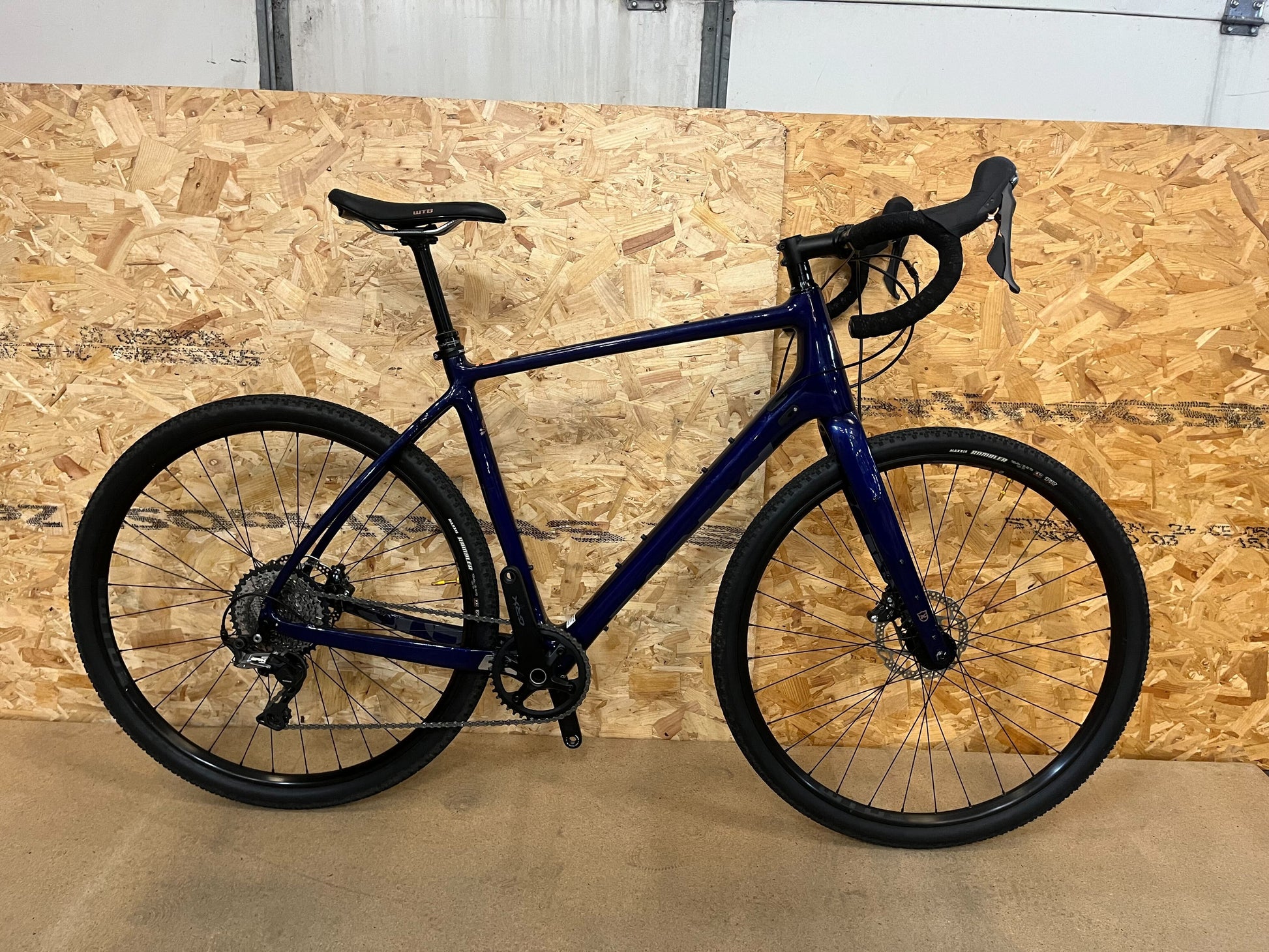

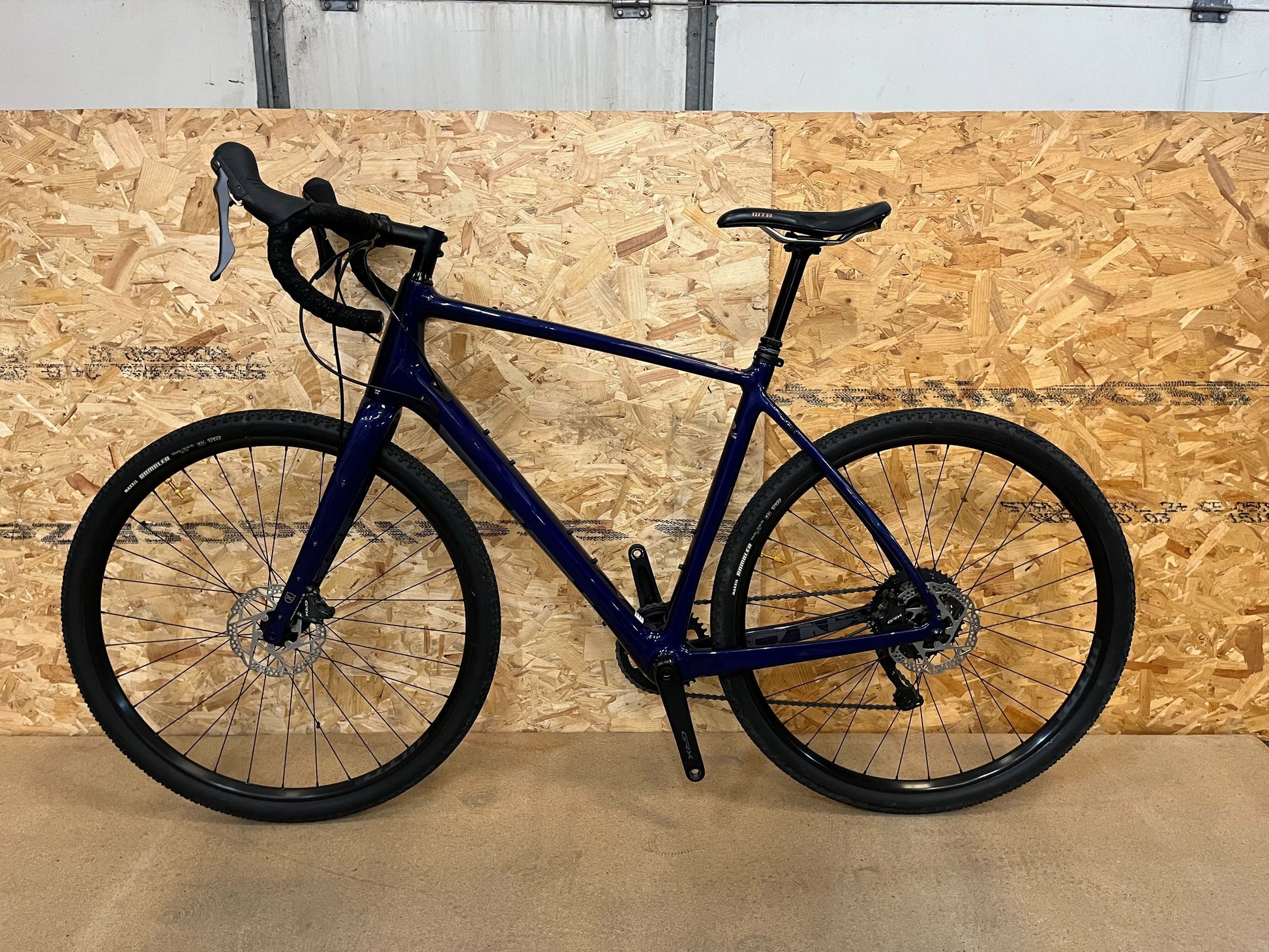

22 - Kona - Libre CR/DL - 56cm - Purple - Ex Demo
22 - Kona - Libre CR/DL - 56cm - Purple - Ex Demo
Sale
Sold out
Regular price
£1,850.00 GBP
Regular price
£3,699.00 GBP
Sale price
£1,850.00 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Low stock - 1 item left
Couldn't load pickup availability
Description
The cream of the crop, the Libre CR DL leaves no stone…er piece of gravel unturned. This gorgeous Race Light Carbon frame provides both performance and comfort across varying terrain. Powered by your legs and an 11-speed Shimano GRX 810 drivetrain, the Libre CR DL shifts with confidence in the mud, on pavement, over singletrack… With a +RAD adjustable dropper post, 700x45c WTB Riddler TCS tires, an Easton EA 70AX wheelset, and a Kona Verso Carbon fork that can carry a ton of gear, the Libre CR DL is the perfect weapon for any adventure, no matter how far away.
“With ample gear mounts…the Libre DL is a highly customizable and versatile bike.”
– Peloton Mag
- Frame Material: Kona Race Light Carbon

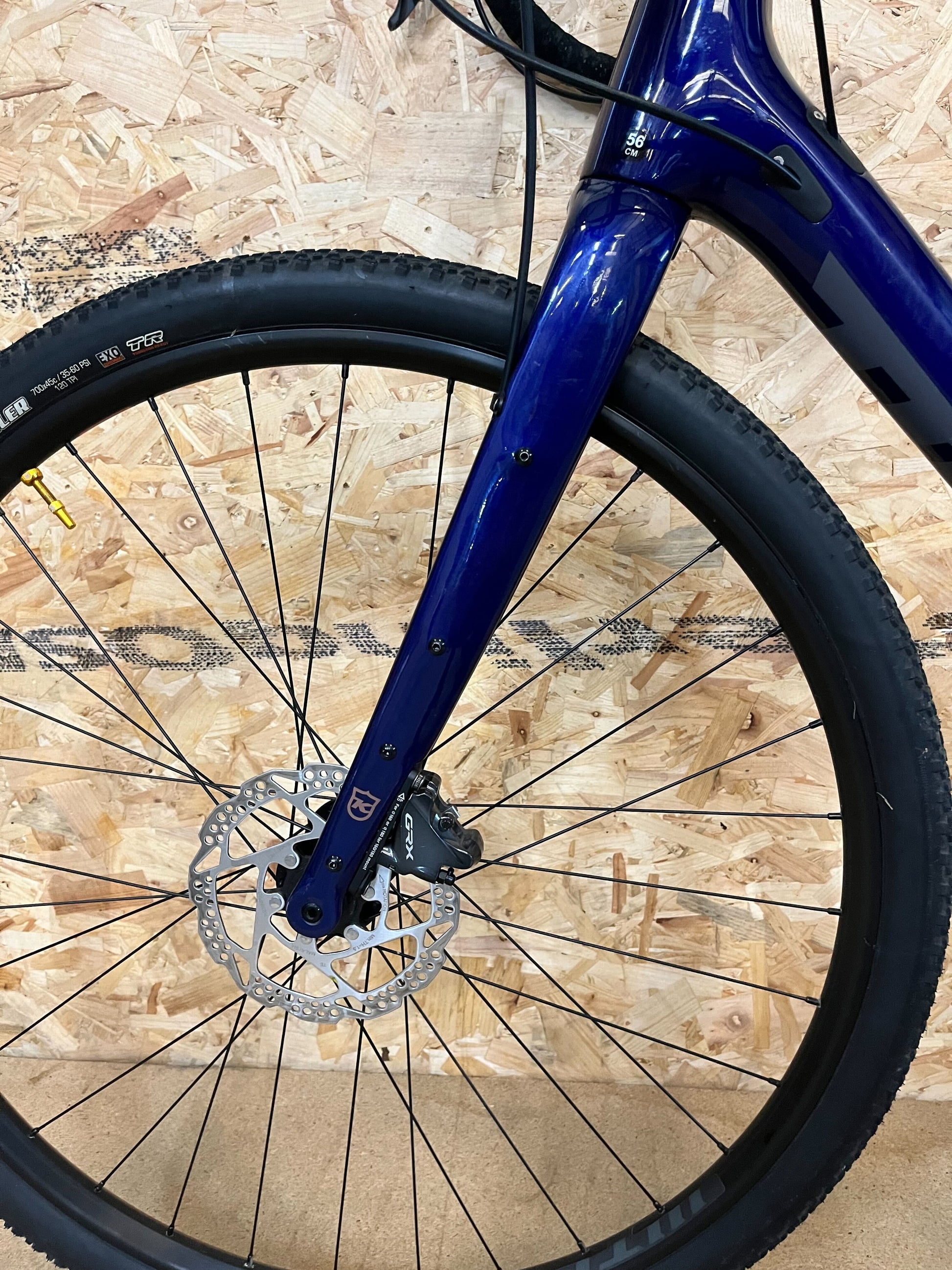

- Fork: Kona Verso Full Carbon Flat Mount Disc
- Wheels: Easton EA 70AX 700c
- Crankset: Shimano GRX 810

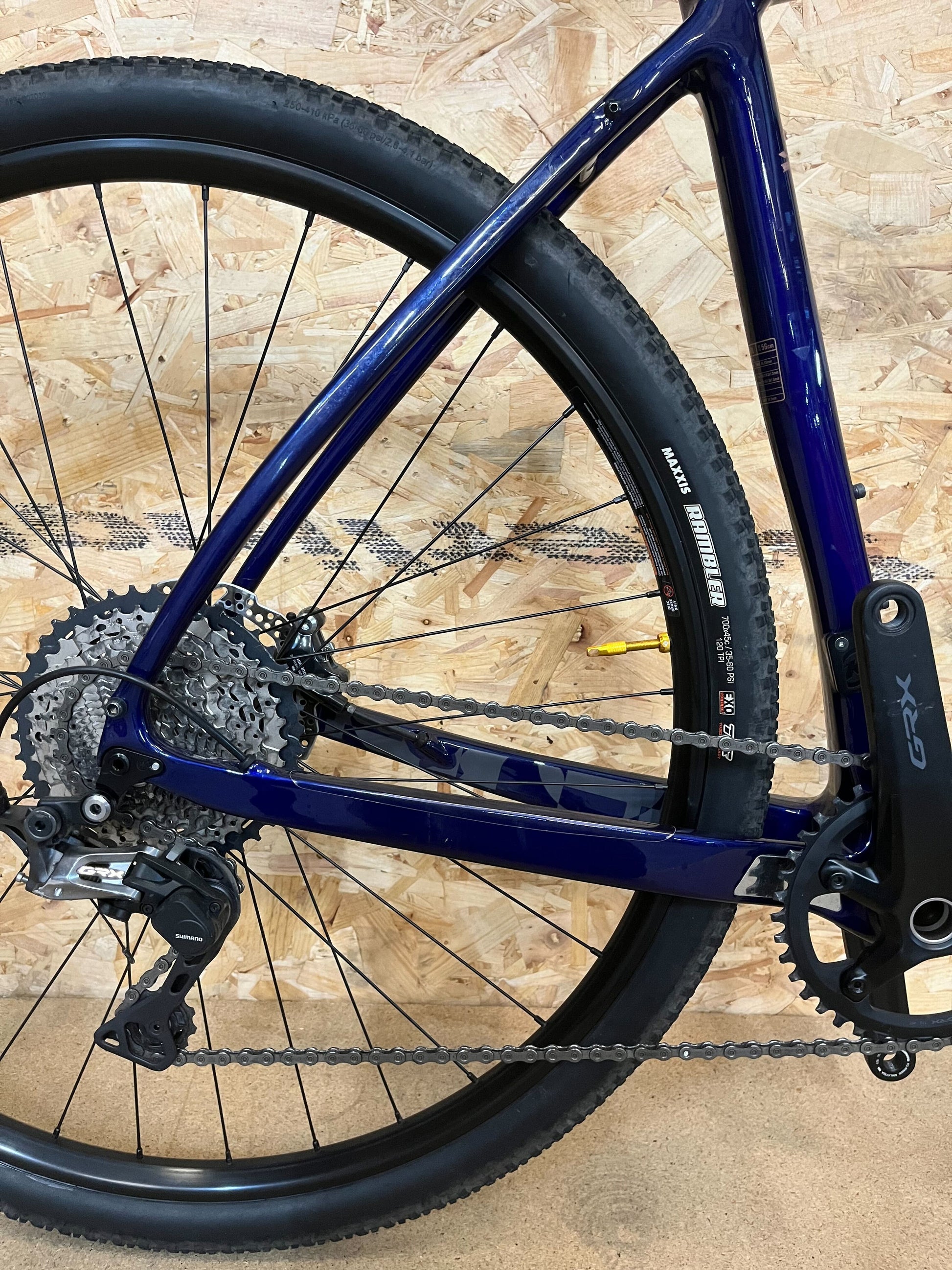

- Drivetrain: Shimano GRX 810 11spd
- Brakes: Shimano GRX 810 160mm front/160mm rear rotor
- Seat Post: TranzX Dropper +RAD Internal 31.6mm
- Cockpit: Easton EC70AX bar/Easton EA90 Stem with Velo Shock Proof Bar Tape
- Front Tire: WTB Riddler TCS DUAL 700x45c
- Rear tire: WTB Riddler TCS DUAL 700x45c
- Saddle: WTB SL8
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona Race Light Carbon |
| Sizes | 50, 52, 54, 56, 58 |
| Rear Shock | n/a |

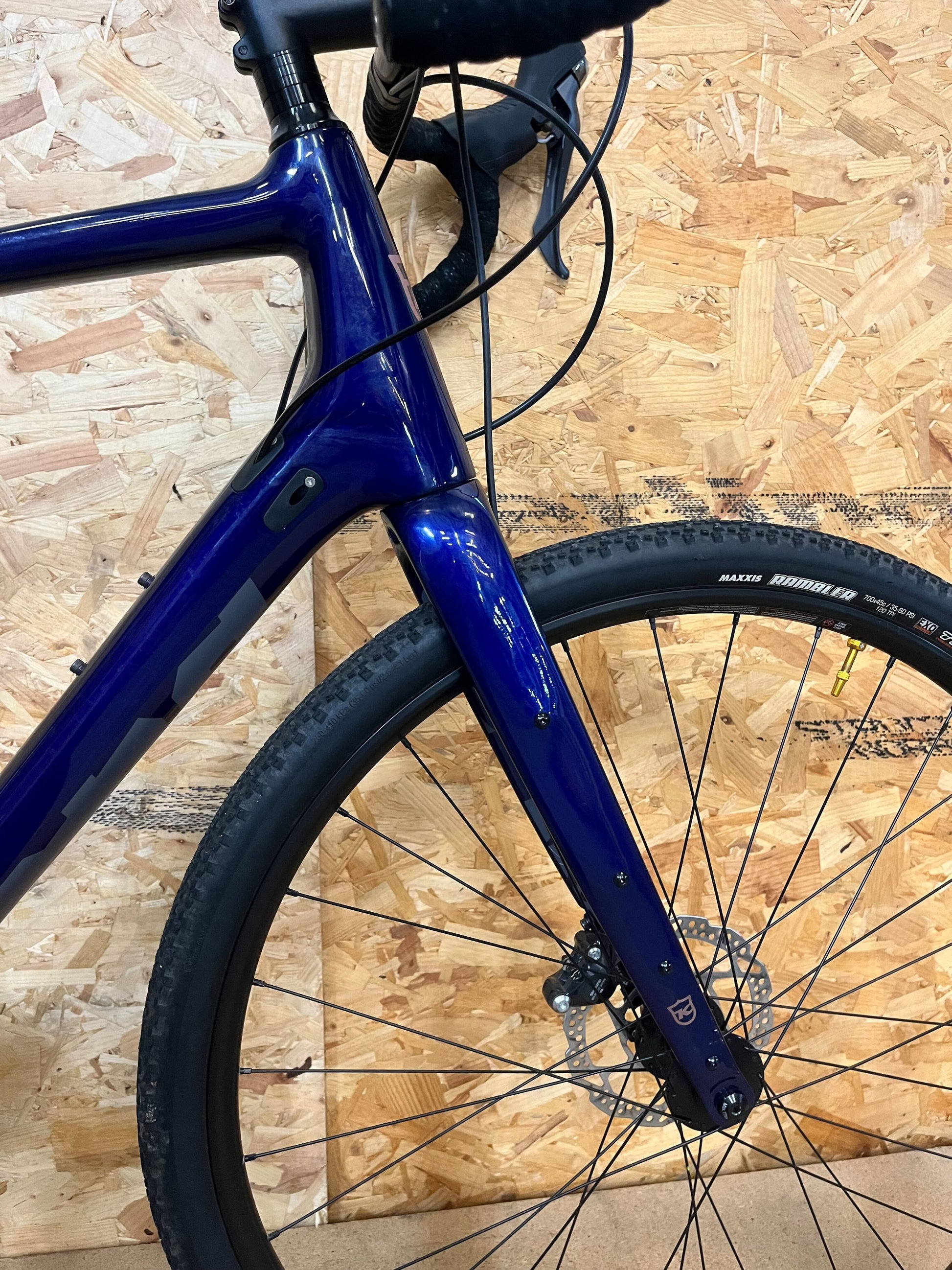

| Fork | Kona Verso Full Carbon Flat Mount Disc |
| Crankarms | Shimano GRX 810 |
| Chainrings | 40t |
| B/B | Shimano PF86 |
| Pedals | n/a |
| Chain | Shimano 105 |
| Cassette | Shimano SLX 11-42t 11spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano GRX 810 |
| Shifters | Shimano GRX 810 w/ Integrated Dropper Lever |

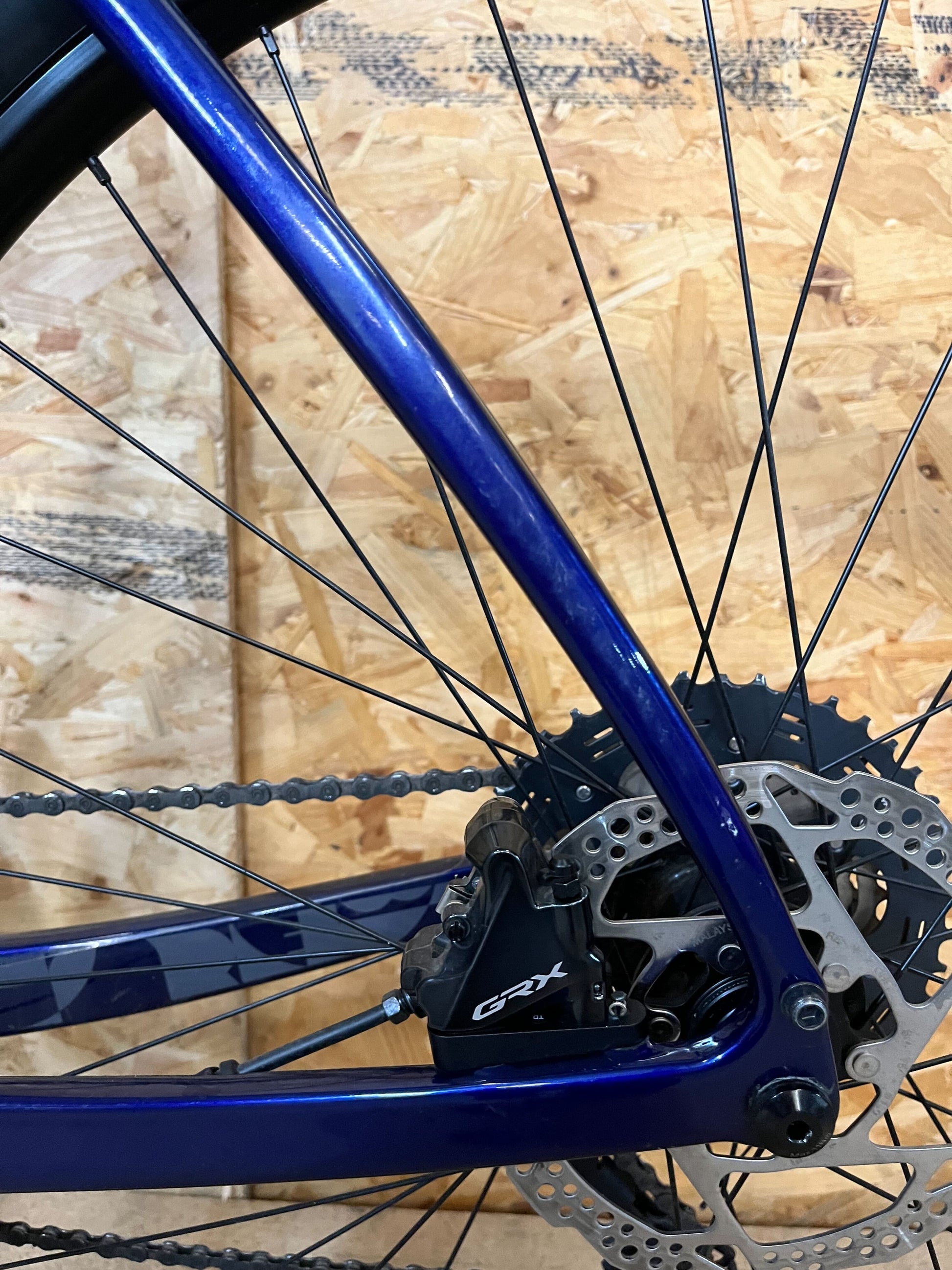

| Brake Calipers | Shimano GRX 810 |
| Front Brake Rotor | Shimano RT54 160mm (centerlock) |
| Rear Brake Rotor | Shimano RT54 160mm (centerlock) |
| Brake Levers | Shimano GRX |
| Headset | FSA No.42ACB |
| Handlebar | Easton EC70AX |
| Stem | Easton EA90 |
| Seatpost | TranzX Dropper +RAD Internal 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Velo Shock-Proof Bar Tape |
| Saddle | WTB SL8 |
| Front Hub | Easton EA 70AX 100x12mm |
| Rear Hub | Easton EA 70AX 142x12mm |
| Spokes | Easton EA 70AX Wheelset |
| Rims | Easton EA 70AX Wheelset |
| frontire | WTB Riddler TCS DUAL 700x45c |
| Rear Tire | WTB Riddler TCS DUAL 700x45c |
| Paint Color | Gloss Metallic Black w/ Magenta, Yellow & Supernova Fade Decals |
All specifications are subject to change without notice
GEOMETRYmminches
| Size | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 455 | 490 | 510 | 540 | 550 |
| 2 | TT Length | 543 | 558 | 572 | 588 | 608 |
| 3 | Reach | 378 | 383 | 386 | 389 | 394 |
| 4 | Stack | 575 | 590 | 610 | 630 | 660 |
| 5 | Standover | 758 | 782 | 803 | 830 | 850 |
| 6 | HT Angle | 70.5 | 70.5 | 71 | 71 | 71 |
| 7 | HT Length | 137.3 | 153.2 | 175.4 | 196.5 | 230.4 |
| 8 | ST Angle | 74 | 73.5 | 73 | 72.5 | 72 |
| 9 | CS Length | 440 | 440 | 440 | 440 | 440 |
| 10 | BB Drop | 75 | 75 | 72 | 72 | 70 |
| 11 | BB Height | 285 | 285 | 288 | 288 | 290 |
| 12 | Wheelbase | 1042 | 1052 | 1058 | 1068 | 1084 |
| 13 | Front Center | 613 | 623 | 628 | 638 | 654 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 |
