Kona Bikes UK

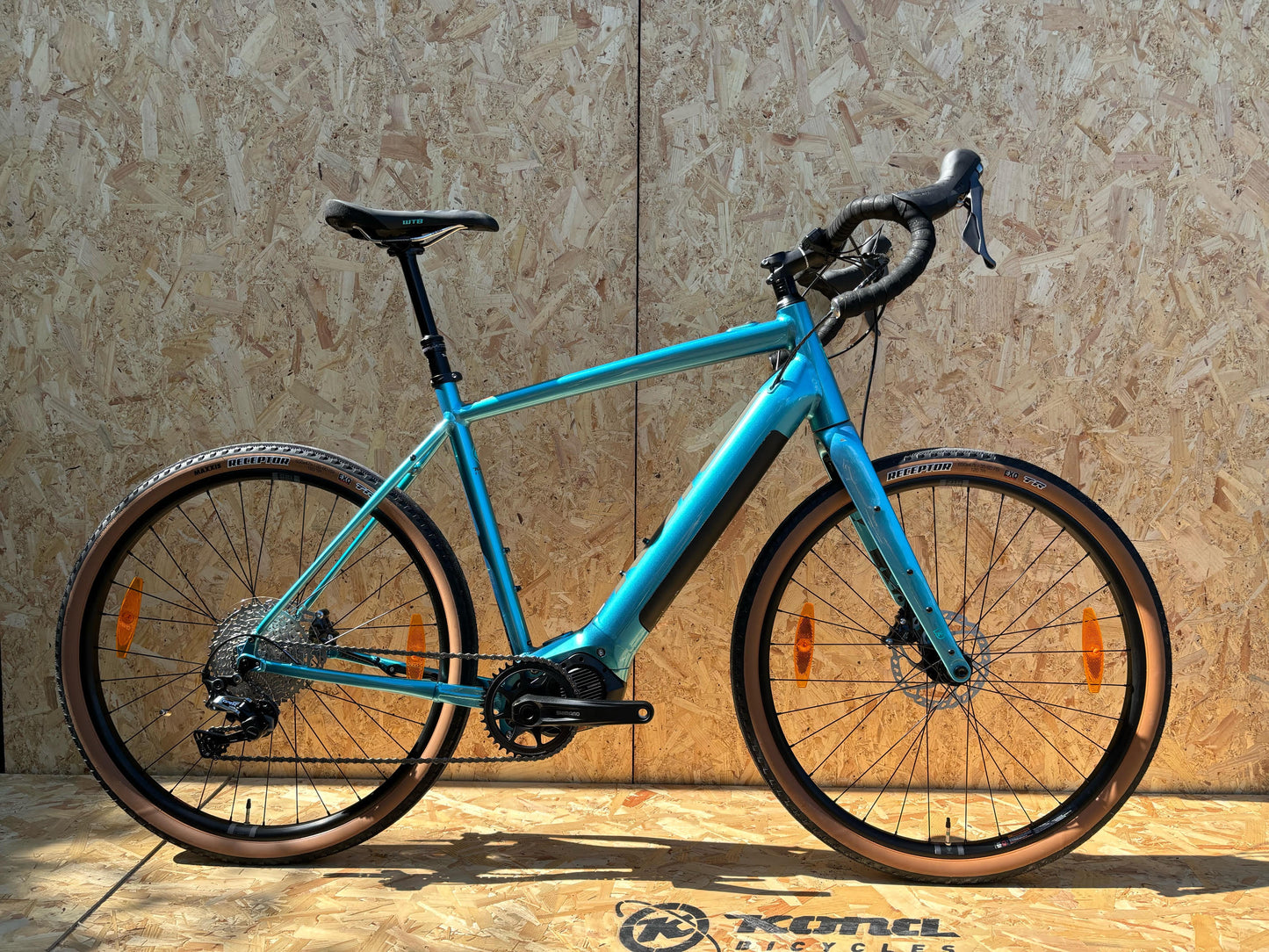

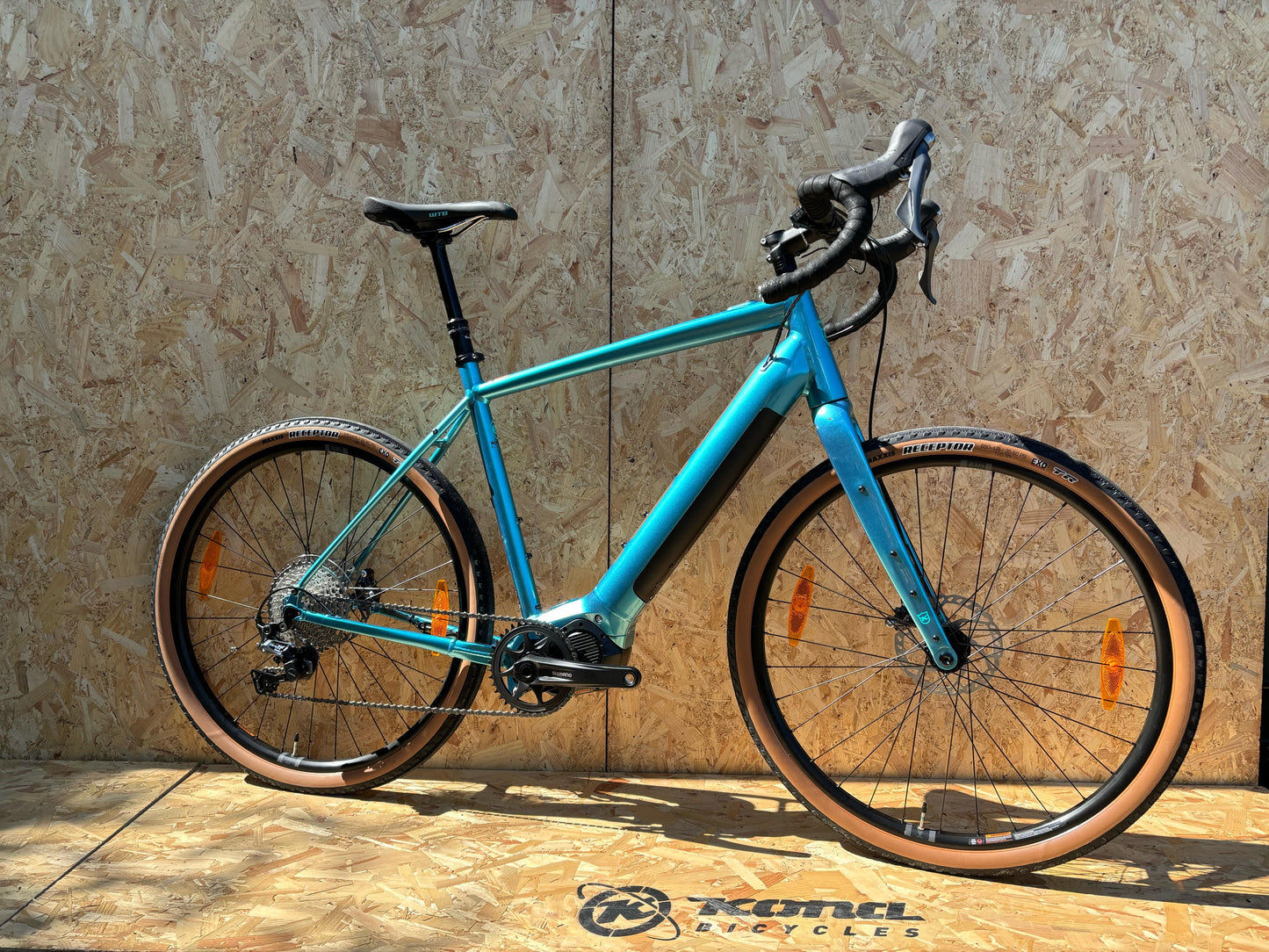

2023 Libre EL - 56cm - Blue | Ex Display

Sale Sold out
Regular price £1,600.00 GBP
Regular price £3,999.00 GBP Sale price £1,600.00 GBP
Tax included. Shipping calculated at checkout.
Low stock - 1 item left
Ask a question

Description

The Libre EL has made itself known as a go-to adventure bike for people of all abilities. Looking to up your distance? Want a tool that allows you to ride farther in less time? The Libre EL is a versatile machine that has the legs to go just about anywhere. Built on our wildly popular Libre platform, the Libre EL features an aluminum frame and Verso Full Carbon Flat Mount Disc fork. Like its CR DL sibling, it runs a gravel-specific drivetrain and brakes, ensuring the grime that you’ll inevitably get from a mucky ride doesn’t affect shifting and braking performance. Unlike its analog sibling it gets a power boost from a Shimano motor and internal battery. In other words, it’ll get you to the top of that insanely steep mountain you’ve been eyeing up, and let you enjoy the benefits of rippin’ gravel on the way down!



SPECS & GEOMETRY



SPECIFICATIONS

FRAME MATERIAL Kona 6061 Aluminum Butted
SIZES 50, 52, 54, 56, 58
REAR SHOCK n/a
FORK Kona Verso Full Carbon Flat Mount Disc
CRANKARMS Shimano E8000
CHAINRINGS Direct Mount Samox 38t
B/B n/a
PEDALS n/a
CHAIN Shimano 105
CASSETTE Shimano Deore 11-42t 11spd
CHAINGUIDE n/a
F/D n/a
R/D Shimano GRX 812
SHIFTERS Shimano GRX 810
BRAKE CALIPERS Shimano GRX 810
FRONT BRAKE ROTOR Shimano RT66 160mm
REAR BRAKE ROTOR Shimano RT66 160mm
BRAKE LEVERS Shimano GRX 810
HEADSET Orbit 1.5 ZS, No.57-T
HANDLEBAR Kona Road
STEM Kona Road Deluxe
SEATPOST TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm
SEAT CLAMP Kona Clamp
GRIPS Kona Cork Tape
SADDLE WTB Volt
FRONT HUB Formula 100x12mm
REAR HUB Formula 142x12mm
SPOKES Stainless 14g
RIMS WTB HTZ i25 TCS 2.0
FRONT TIRE WTB Venture TCS w/ Puncture Protection 650x47c
REAR TIRE WTB Venture TCS w/ Puncture Protection 650x47c
DRIVEUNIT Shimano E7000 20MPH
BATTERY Shimano 504Wh
DISPLAY Shimano SC-E7000 Display
CHARGER Shimano STEPS 2A
BATTERYLOCK n/a
PAINT COLOR Gloss Metallic Blue w/ Charcoal & Turquoise Decals
EXTRAS n/a
All specifications are subject to change without notice

GEOMETRY

  SIZE 50 52 54 56 58
1 ST LENGTH 455 490 510 540 550
2 TT LENGTH 543 558 573 588 608
3 REACH 378 383 386 389 394
4 STACK 575 590 610 630 660
5 STANDOVER 721 749 772 799 818
6 HT ANGLE 70.5 70.5 71.0 71.0 71.0
7 HT LENGTH 137 153 175 197 230
8 ST ANGLE 74.0 73.5 73.0 72.5 72.0
9 CS LENGTH 440 440 440 440 440
10 BB DROP 75 75 72 72 70
11 BB HEIGHT 268 268 271 271 273
12 WHEELBASE 1042 1052 1058 1068 1084
13 FRONT CENTER 613 623 628 638 654
14 FORK LENGTH 410 410 410 410 410
15 FORK OFFSET 50 50 50 50 50


Bike Geometry
2023 Libre EL - 56cm - Blue | Ex Display
  • £1,600.00
