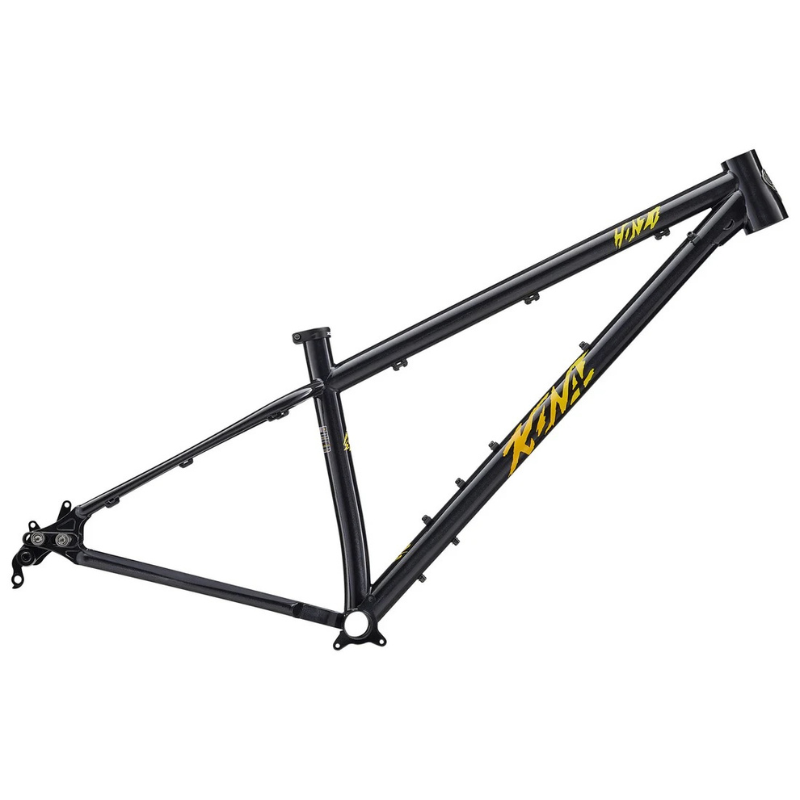

2023 Honzo ESD Frame - Medium - Ex Display

*Not in original packaging

If Mad Max rode a bike, it would be the Honzo ESD. It’s part Honzo, part monster, and with geometry that inspired the Process X, it’s made for those who want to punish the trails. A steel frame holds a Marzocchi Bomber Z1 fork with 150mm of travel. It’s got strong 4-piston brakes, grippy Maxxis rubber, and a headtube badge that will scare your children at night. This is the Warrior of the Wasteland.

GEOMETRY

	SIZE	S	M	L	XL
1	ST LENGTH	380	380	420	450
2	TT LENGTH	578	605	633	670
3	REACH	440	465	490	525
4	STACK	625	634	643	652
5	STANDOVER	712	710	709	706
6	HT ANGLE	63.0	63.0	63.0	63.0
7	HT LENGTH	90	100	110	120
8	ST ANGLE	77.5	77.5	77.5	77.5
9	CS LENGTH	417	417	417	417
10	BB DROP	62.5	62.5	62.5	62.5
11	BB HEIGHT	312.5	312.5	312.5	312.5
12	WHEELBASE	1186	1216	1245	1285
13	FRONT CENTER	776	806	835	875
14	FORK LENGTH	560	560	560	560
15	FORK OFFSET	42	42	42	42
